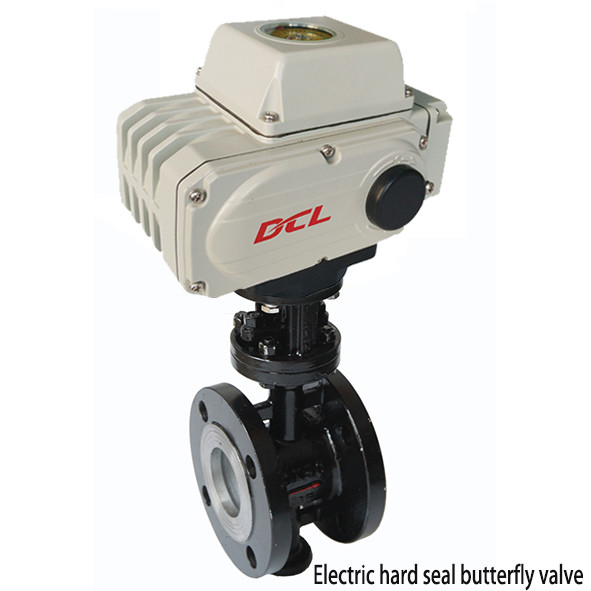

AC380V 15W quarter-turn Quick Open Electric Actuator

  • AC380V 15W quarter-turn Quick Open Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-K10

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power AC380V Standard Time/Torque15Nm 25Nm/2S ; 50Nm/4S ; 80Nm/8S
Type On-off Protection Class IP67
Ambient Temperature -25℃~+55℃ Motor Power 15W
Medium Gas/Oil/Water/Other Material Of Seal Surface Soft Sealed
Rated Current 0.10A Connection Form Flange
Highlight

15W Quick Open Electric Actuator
Leave a Message
Product Description

1. Description

DCL quick open electric actuators are widely used for fast open and close applications. By using a multi-head worm gear instead of a single head worm gear, the transmission efficiency of whole gear train will improve and the output drive speed will be higher than standard model. Different reduction ratios of gear train can output different torque and speed. So, DCL provides kinds of speed/torque combinations in very compact size.



2. Specification

Type DCL-K10
Power Supply AC2380V
Motor Power 15W
Max Current 0.10A
Torque/Time 25Nm/2S 50Nm/4S 80Nm/8S
Avaliable control circuit Type H
Turning Angle 0～90° Adjustable
Total Weight 4.5kg
Insulating Resistance 100MΩ/500VDC
Withstand Voltage Class 1800V 1minute
Protection Class IP67
Installation Angle 360° at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors
Ambient Temperature -25～+55℃
Optional Function Heater/Dome indicator/Handle
