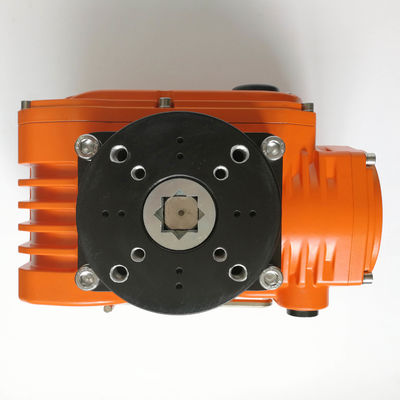

Heavy Duty Motor Explosion Proof 400Nm 3 Phase Actuator

  • Heavy Duty Motor Explosion Proof 400Nm 3 Phase Actuator
  • Heavy Duty Motor Explosion Proof 400Nm 3 Phase Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL-10/20/40/60/100/160/250
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Compact Electric Actuator Name 3 Phase Actuator
Total Weight 4.5KG To 20KG Motor Power 15W To 140W
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Protection Grade IP67 Waterproof
Highlight

400Nm 3 phase actuator

,

Explosion Proof valve actuator

,

380VAC valve Actuator
Leave a Message
Product Description

Emergency power off power button added 3 phase actuator with Heavy duty motor with overload protection



Description



DCL electric actuators are compact but rugged to reach military industrial standard. All metal gears, housing and fully enclosed heavy duty squirrel-cage asynchronous induction motor make actuator can frequently run from open to close with super long life with constantly overload vibration. Not like actuators those may use plastic gears or bearings, DCL broad its applications to heavy industry field, even nuclear power plant and warship, where must be used very safely and stably. While also not like actuators with very huge volume or super weight that cost high, these small size actuators are also widely used for civil field with limit installation space and budget.

DCL can add standard handwheel to its electric actuators, both for common type or explosion proof type. To ensure the safety of manual handling, an emergency power off button is also available to avoid mistake operation. The power off button is on the back of actuator and very easy to reach. Sometimes, we can not confirm the actuator is powered or not, we just press the button. Commonly the handwheel is disconnect states with worm gear, when press handwheel in, it connects to worm gear and can drive the output drive and valve.





Specification:

Actuator Type Standard Time/Torque Optional Time/Torque Turning Angle(Max.range) Total Weight Power Supply Selected Control Circuit
DCL-Ex05 20S/50Nm 4S/20Nm 10S/30Nm 60S/50Nm 0~360°Adjustable 3.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex10 30S/100Nm 15S/50Nm 60S/100Nm 0~90°Adjustable 5.0Kg DC24V/AC24V AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex20 30S/200Nm 15S/100Nm 60S/200Nm 0~90°Adjustable 5.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex40 30S/400Nm 15S/200Nm 60S/400Nm 0~90°Adjustable 9.5Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
DCL-Ex60 45S/600Nm   0~90°Adjustable 10Kg DC24V/AV110V/AC220V/AC380V Types of A/B/C/D/E/F/G/H
Name: 3 Phase Actuator
Installation Angle: 360°
Motor Power: 15W To 140W
Protection Grade: IP67 NEMA4/4X
Feature: Heavy Duty Motor
Standard Time/Torque: 30S To 75S/100Nm To 2500Nm/885in.lbs To 22125in.lbs
Total Weight: 4.5KG To 20KG
Ambient Temperature: -25℃~+55℃ / -13°F~+131°F
Power Supply: 24VAC/110VAV/220VAC/380VAC/24VDC





Features

  • 90° operation, middle position optional
  • Non ventilation heavy duty motor with overheat protection
  • Corrosion resistances housing with rust passivation aluminum alloy and thermally bonded polyester coating
  • All 40Cr alloy spur gears, hard copper alloy worm gear, metal tapered roller bearings
  • Permanent lubricated without maintenance for over 10000 full range life cycles
  • Local button to cut off power when emergency issue happens for manual operation
  • Valve position indicator/flat or convex
  • ISO5211 multi flange mounting
  • Allen wrench manual override/handwheel optional
  • CSA certified per UL standard/CE marked
