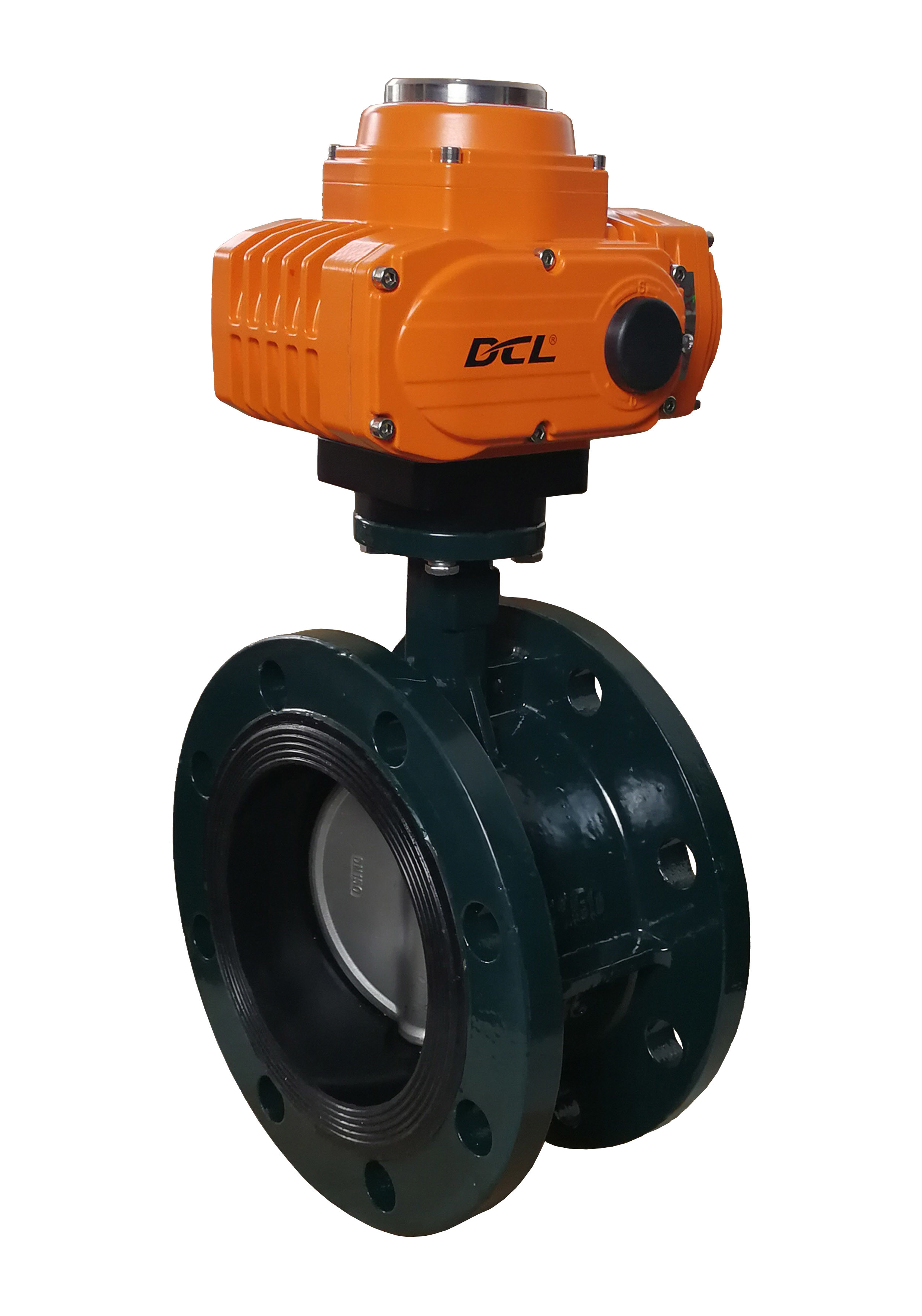

Zero Leakage ASME Class 150 DN50 Electric Butterfly Valve

  • Zero Leakage ASME Class 150 DN50 Electric Butterfly Valve
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

DN50 Electric Butterfly Valve

,

ASME Class 150 Electric Butterfly Valve

,

DN250 zero leakage butterfly valve
Leave a Message
Product Description

Electric Actuator Coupling With Electric Butterfly Valve From DN50-DN250





Features



High performance butterfly valve

  • Size from DN50 to DN 600, 2” to 24”
  • Seat material: PTFE, RTFE, KEEP for temperature from -50℃ to 250℃,-58F to 482F
  • Body material: WCB(Carbon steel), CF8M(Stainless steel)
  • Body style: Wafer, lug and double flanged
  • Pressure rating: ASME Class 150, 300, 600
  • Applications: High pressure, high temperature, critical service
  • Shut off rating: Zero leakage
  • Blow proof stem
  • 100% replaceable seat for easy service and maintenance



Electric actuator

  • 360° turn for 50Nm and 90° for other torque
  • Fully enclosed squirrel-cage asynchronous motor with F-class insulation rating
  • Auto reset thermal switch embedded in the motor winding – trips
  • Rugged IP68 and type 4X aluminum alloy with thermally bonded polyester coating
  • Explosion proof grade ExdIIBT4 for ATEX/Zone system and Group C, D T4 for Division system
  • Self-locking all metal gear train
  • Two auxiliary limit switches to confirm valve position
  • Manual override with handwheel or wrench
  • CSA certification per UL and CSA standard/ATEX/CE/RoHS 3.0/SIL 3



Description

DCL double offset high performance butterfly valve’s innovation design offers rugged reliability and very easy service in the field. The valves are all low torque design with bi-directional zero leakage seat, and can be automated inexpensively with DCL electric actuators. With rigorous test, DCL high performance valves can reach nearly 1,000,000 times operation at 2 psi, and over 100,000 times operation with 720 psi.



Specification:

Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-Ex05 DN50~65 DN40 DN50~80
DCL-Ex10 DN80~100 DN50~65 DN100~200
DCL-Ex20 DN125~150 DN80~100 DN250~300
DCL-Ex40 DN200 DN125 DN350~450
DCL-Ex60 DN250 DN150 DN500~600
