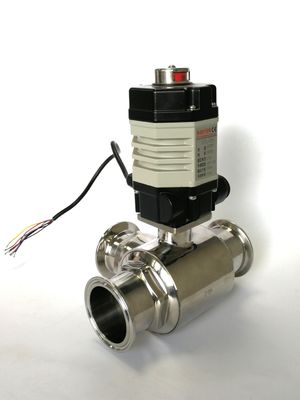

Clamp Type 3 Way Motorized Ball Valve DN32 Electrically Operated Ball Valve

  • Clamp Type 3 Way Motorized Ball Valve DN32 Electrically Operated Ball Valve
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Clamp 3 Way Motorized Ball Valve

,

DN32 3 Way Motorized Ball Valve

,

DN32 Electrically Operated Ball Valve
Leave a Message
Product Description

Description

Clamp type 3-way ball valves are commonly used to change flow direction in food & beverage, pure chemical and winery industries with sanitary treatment. Clamp type connection is convenience for field engineer to install and disassemble the valve from pipe, especially for the size less than DN100 (4”). That is why clamp type 3-way ball valves without sanitary treatment are also more and more popular in other fields, such as refrigeration equipment, power plant and Heavy CNC machine tools. DCL’s clamp type ball valves are overflow prevention design with long life cycles. 3-way ball valve can also used as mixing valve with modulating type electric actuator.





Specification

Actuator Type Butterfly Valve(≤PN1.0MPa) Ball Valve(≤PN1.6MPa) Vent Valve(≤PN0.1MPa)
DCL-02 ≤DN40 ≤DN32
DCL-05 DN50~65 DN40 DN50~80
DCL-10 DN80~100 DN50~65 DN100~200
DCL-20 DN125~150 DN80~100 DN250~300
DCL-40 DN200 DN125 DN350~450
DCL-60 DN250 DN150 DN500~600
DCL-100 DN300 DN200 DN700~800
DCL-160 DN350~400 DN250 DN900
DCL-250 DN450~600 DN300~350 DN1000~1200





Ball valve

Connection: Clamp type

Body: SS304/CF3M

Treatment: Sanitary optional

Way type: T type or L type optional

Size: DN 32 to DN 100 (1 1/4” to 4”)



Electric Actuator

Type: On-off or Modulating with 4-20mA input/output signal

Power Supply: 220VAC or 24VDC optional

Torque: 50Nm to 600Nm

Manual override with Allen wrench or hand wheel

Direct mounting with ISO5211 multi flange
