Damper Use Smart Electric Actuator With Rocker Arm Metallurgical Plant , Steel Plant
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Protection Grade | IP67 Waterproof | Name | Smart Electric Actuator |
|---|---|---|---|
| Use For | Cooling System | Warranty | One Year |
| Type | 1/4 Turn Operation Actuator | Feature | Self Locking |
| High Light | Damper Use Smart Electric Actuator,Smart Electric Actuator With Rocker Arm,Electric Actuator For Metallurgical Plant |
||
Product Description

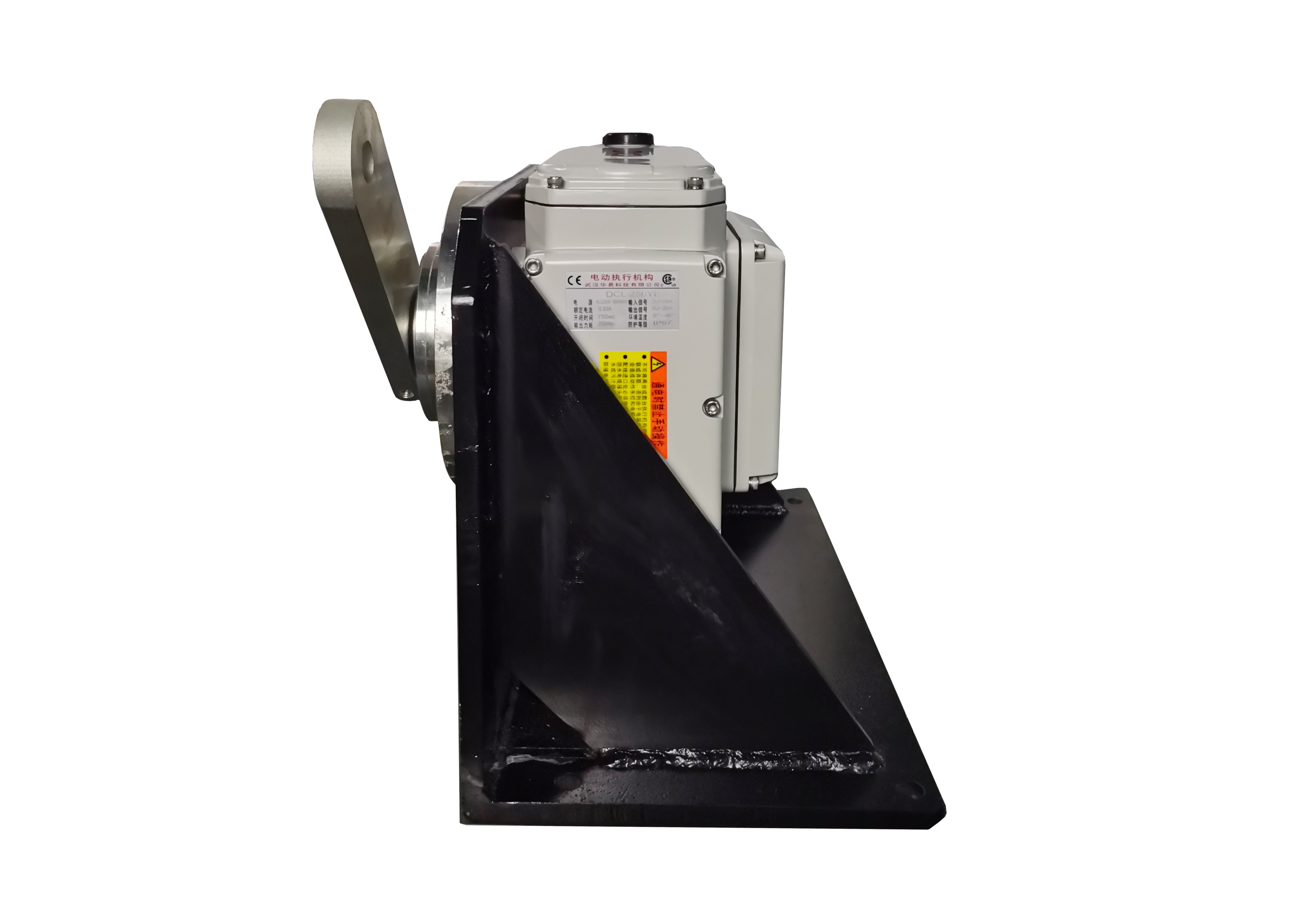

Damper used electric actuator with rocker arm for metallurgical plant, steel plant and fire power plant
Description
The dampers used in metallurgical plant and steel plant are usually very large for high power blowers. Commonly, a connection rod is designed to change the rotation motion of actuator to a reciprocating motion of damper. DCL can not only do customized rocker arm for different sizes of damper, but also adjust the actuator’s turning angle from 30° to 110°,.
The environment of metallurgical plant or steel plant is commonly very bad with high ambient temperature, dusty and dangerous. DCL’s electric actuators are designed according to power plant standard. The enclosure is C3 level corrosion resistance with powder electrostatic spraying and the control pack is fully potted to ensure long time stable operation of the actuator.
Specification:
| Name: | Smart Electric Actuator |
| Standard Torque: | 50Nm To 2500Nm/442in.lbs To 22125in.lbs |
| Input Signal: | 4-20mADC/1-5VDC/2-10VDC |
| Power Supply: | 24VAC/110VAV/220VAC/380VAC |
| Protection Grade: | IP67 Waterproof |
| Ambient Temperature: | -25℃~+55℃ / -13°F~+131°F |
| Warranty: | One Year |
| Standard Time: | 20S To 75S |
| Output Signal: | 4-20mADC |
| Motor Power: | 6W To 140W |
| Total Weight: | 1.2KG To 20KG |
| Installation Angle: | 360° |
| Use For: | Cooling System |
Features
- Full potted multi-function smart control pack, world leading anti-interference ability
- Self-calibrating and problem self-checking function
- Quarter turn operation with mechanical limits
- Unique integral motor/control pack/ housing design with very small size and beautiful appearance
- Weather proof aluminum alloy enclosure with thermally bonded polyester coating
- Heavy duty motor with thermal overload protection
- Standard ISO5211 multi-flange valve mounting
- CSA certificated complied to UL and CSA standard/ CE marked
