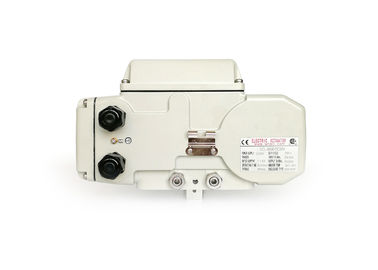

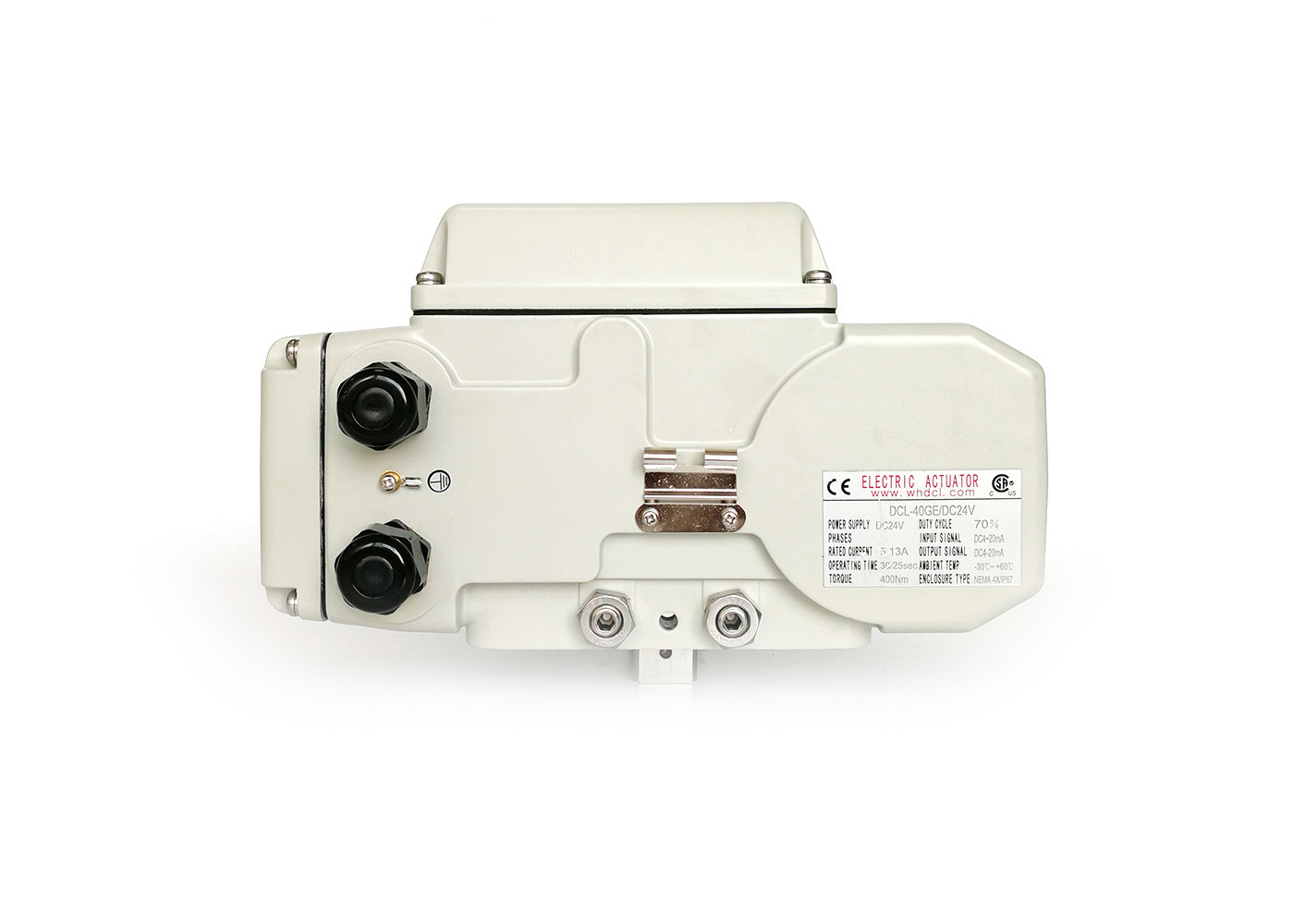

Smart Waterproof 400Nm DC24V Fail Safe Electric Actuator

  • Smart Waterproof 400Nm DC24V Fail Safe Electric Actuator
  • Smart Waterproof 400Nm DC24V Fail Safe Electric Actuator
Place of Origin WUHAN,CHINA
Brand Name DCL
Certification CE/ROHS/CSA/IP67
Model Number DCL GE/GEY model
Minimum Order Quantity 1pc
Packaging Details carton/pallet
Delivery Time 7 working days
Payment Terms D/P, T/T, Western Union, MoneyGram
Supply Ability 2000PCS/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 24VAC/110VAV/220VAC/380VAC Motor Power 6W To 140W
Standard Torque 50Nm To 2500Nm Output Signal 4-20mADC
Input Signal 4-20mADC/1-5VDC/2-10VDC Standard Time 20S To 75S
Protection Grade IP67 NEMA4/4X Total Weight 1.2KG To 20KG
Ambient Temperature -25℃~+55℃ / -13°F~+131°F Installation Angle 360°
Highlight

DC24V Fail Safe Electric Actuator

,

400Nm smart valve Actuator

,

dcl Fail Safe Actuator
Leave a Message
Product Description

Fail safe smart electric actuator with position setting function when lost input signal



Features

  • 90° turn with proportional to input control signal
  • Self-calibrating with continuously output position monitoring signal as standard
  • All metal gear train with self-locking bronze alloy worm gear
  • Watertight IP67 and NEMA 4X aluminum alloy enclosure with 100% underwater tests
  • World-leading EMC, 100% passed EFT, ESD and Surge tests
  • Stable operation on extra high/low temperature with high humidity
  • Full potted resin plastic packaged controller to protect electronics from vibration and moisture
  • Fail safe drive to any setting position when input signal loses
  • CSA listed/UL complied/CE marked/RoHS 3.0 tested





Description

DCL-E modulating type electric actuators are fail-safe. When control signal loses or mistaken input beyond certain range(4-20mA/2-10V), and power is still on, actuator can drive valve to any position that has been set before, such as full open or full close position. Self-locking function can also prevent back driving and hunting when power lose. These functions can keep whole control system safe when malfunction happens.

All actuators are rigorous tested and certified by CSA per UL and CSA standard, tested by SGS per CE and RoHS 3 standard. The self-designed high stability control packs are also certified and tested by top companies to ensure no problems during high humidity and high temperature.





Specification



Type DCL-05E DCL-10E DCL-20E DCL-40E DCL-60E DCL-100E DCL-160E DCL-250E
Power AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC24/110/220 AC110/220 AC110/220 AC110/220
Output Torque 50Nm 100Nm 200Nm 400Nm 600Nm 1000Nm 1600Nm 2500Nm
Acting Time 20S 30S 30S 30S 45S 30S 48S 75S
Turning Angle 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90° 0-90°
Motor Power 10W 25W 40W 90W 90W 120W 140W 140W
Rated Current 1.50/0.24/ 0.16A 2.12/0.57/ 0.35A 3.65/0.65/ 0.37A 6.80/1.12/ 0.57A 6.80/1.18/ 0.60A 1.93/0.94A 1.75/0.96A 1.75/0.98A
Total Weight 2.5kg 4.5kg 9kg 9.5kg 10kg 19kg 19.5kg 20kg
Input Signal 4-20mADC,1-5VDC,2-10VDC
Output Singal 4-20mADC
Basic Error not more than ±1%
Reciprocating Error not more than 1%
Dead Space 0.5%-5.0% adjustable
Damping Characteristic 0 times
Repeating Error in Actuator ≤1%
Insulating Resistance AC24V:100MΩ/250VDC AC110/220V:100MΩ/500VDC
Withstand Voltage Class AC24V:500VAC 1minute AC110/220V:1500VAC 1minute
Protection Class IP67
Installation Angle 360°at any angle
Electric Interface Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line
Ambient Temperature -20℃~+55℃
Optional Function Over-torque protector/Dehumidify Heater/Passive contact switch/Dome indicator/Handle
Remark Any other input or output signal needed, please specified in purchase order.
